power GRID:
Svc cooling
voltage stability and power quality
in industrial grids
STATCOM systems are used in electrical Power Grids in Utility applications but also in industrial networks. They can have multiple functions as to stabilize network voltage, provide reactive power or to participate in network overall stability in case of network faults. They are considered critical infrastructure and equipment for the reliability of the network.
Each system consists of transformer, reactors, busbars and power electronic valves typically using IGBT, IGCT or equivalent components. These power electronics provide heat losses which need to be cooled.
Cooling requirements
Required cooling power can vary typically from few hundred to few thousand kilowatts. Coolant flows also range from hundreds of liters per minute to several thousand liters per minute. Cooling systems have typically high degree of redundancy and reliability of the system is in central role. Life time expectancy is several decades for the system and therefore also maintainability is important aspect for the system and components.
Closed-loop liquid cooling application:
A closed-loop liquid cooling system circulates coolant through power electronic valve heat sinks, removing heat and transferring it to the ambient outdoor air via a water-to-air heat exchanger. Alternatively installation site may have technical water circulation in which case water-to-water heat exchanger may be used. Power electronic valves are located at voltage potential why low conductivity of the coolant is a must.
Adwatec solution

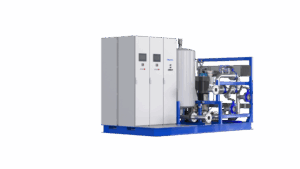

Adwatec provides a series of effective cooling stations for the closed-loop systems with high cooling performance in different flow ranges. Cooling systems are equipped with water treatment circuit providing de-ionized coolant and keeping conductivity at low level all times. Adwatec cooling stations are tailored to customer cooling power and coolant flow requirements. Additionally, a wide range of options on redundancy, accessories and project requirements are available. .
Your cooling solution for SVC
Cooling solutions for the most demanding de-ionized water cooling systems.
Why choose Adwatec?
Sustainability
Adwatec is sustainable because it runs its business in a sustainable way, provides sustainable products, and delivers these products to sustainable applications.
Customisation
Adwatec offers modular cooling solutions, designed for flexible integration within switchgear cabinets or custom configurations. We provide both standard and custom connection pipes, all manufactured to high industrial standards.
Ease of work
We prioritize customer ease with open resources, a product configurator, automated processes, and round-the-clock project support.
Reliability
With 25+ years of water cooling experience, we deliver rigorously tested, tailored solutions for diverse applications.
Lifecycle Cost
Our compact, correctly sized solutions minimize costs and energy use. Marine approvals, easy installation, and eco-mode control ensure long-term efficiency and reduced maintenance.
